$65.00Dry/Hobbs Hr
Operating Procedures
Requires checkout
Refuel 9 gallons per side. Use provided fuel stick to measure quantity.
Phillips 66 Victory Oil (blue bottles). Maintain 5 quarts cold, Min 4 quarts, Max 6 quarts.

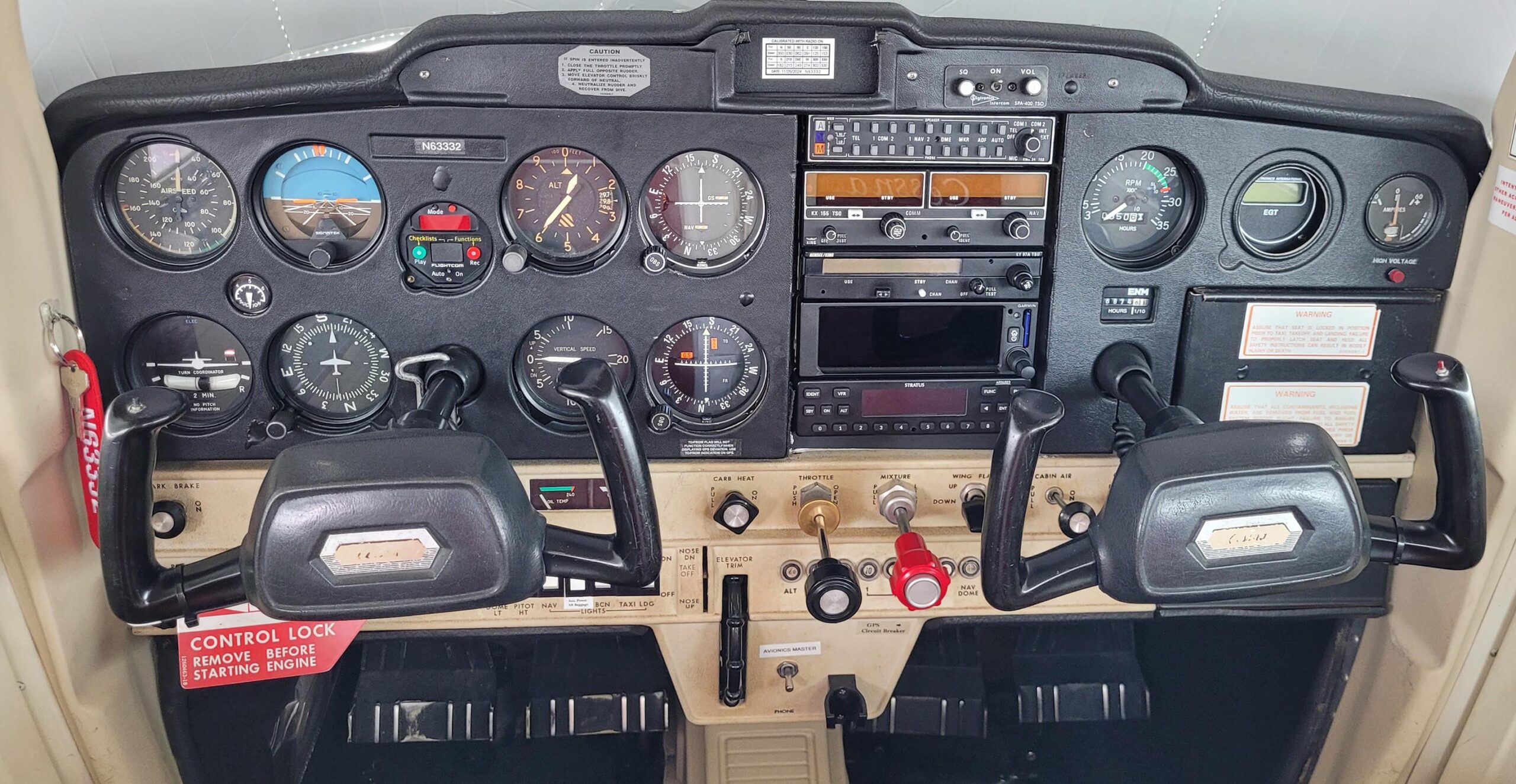

Avionics/Equipment
This aircraft is able to shoot VOR, ILS, RNAV, & LPV approaches. It meets all the IFR check ride requirements.

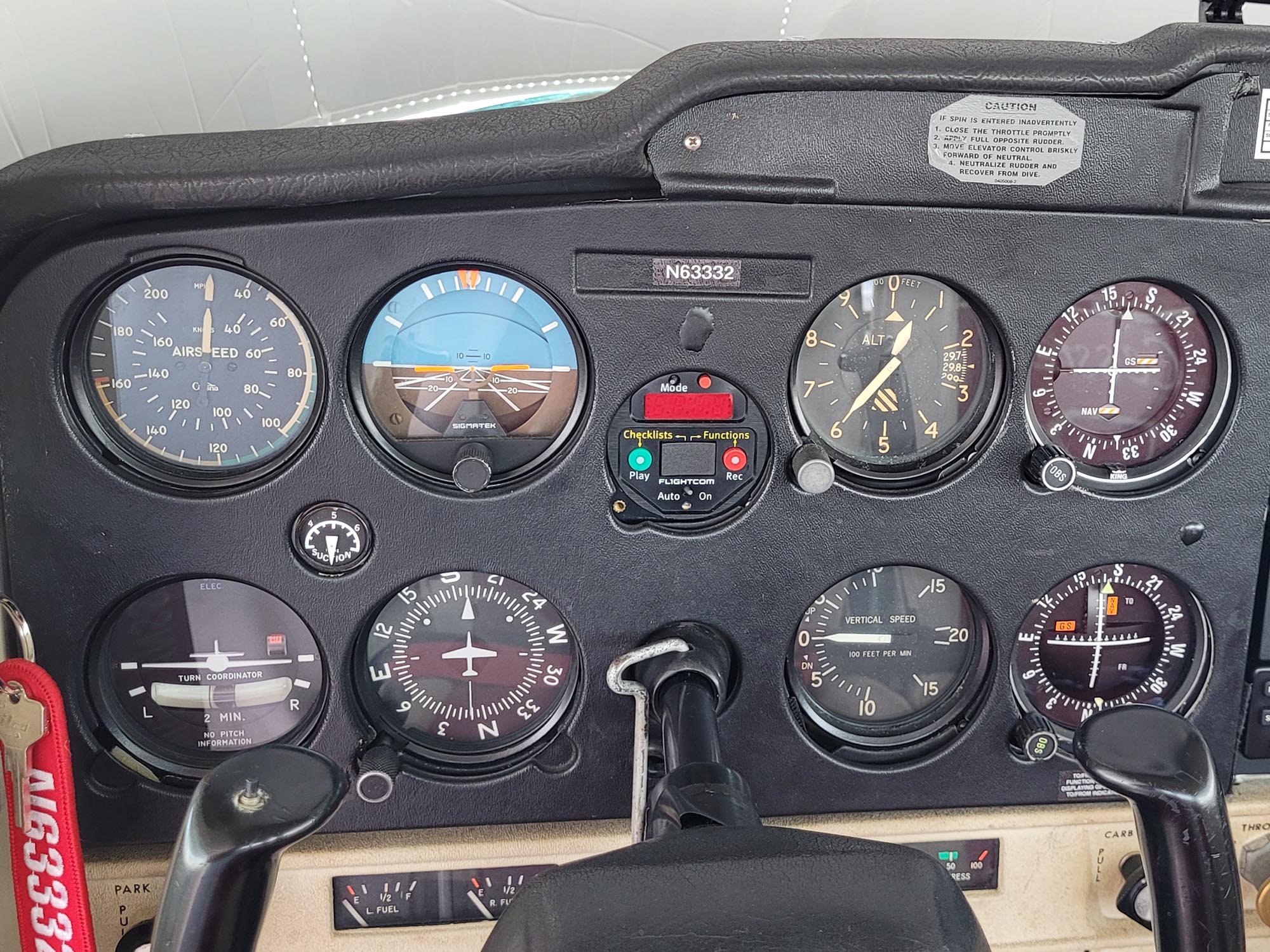

Standard vacuum driven instrument 6 pack
DVR-300i clock (Not Recorder)

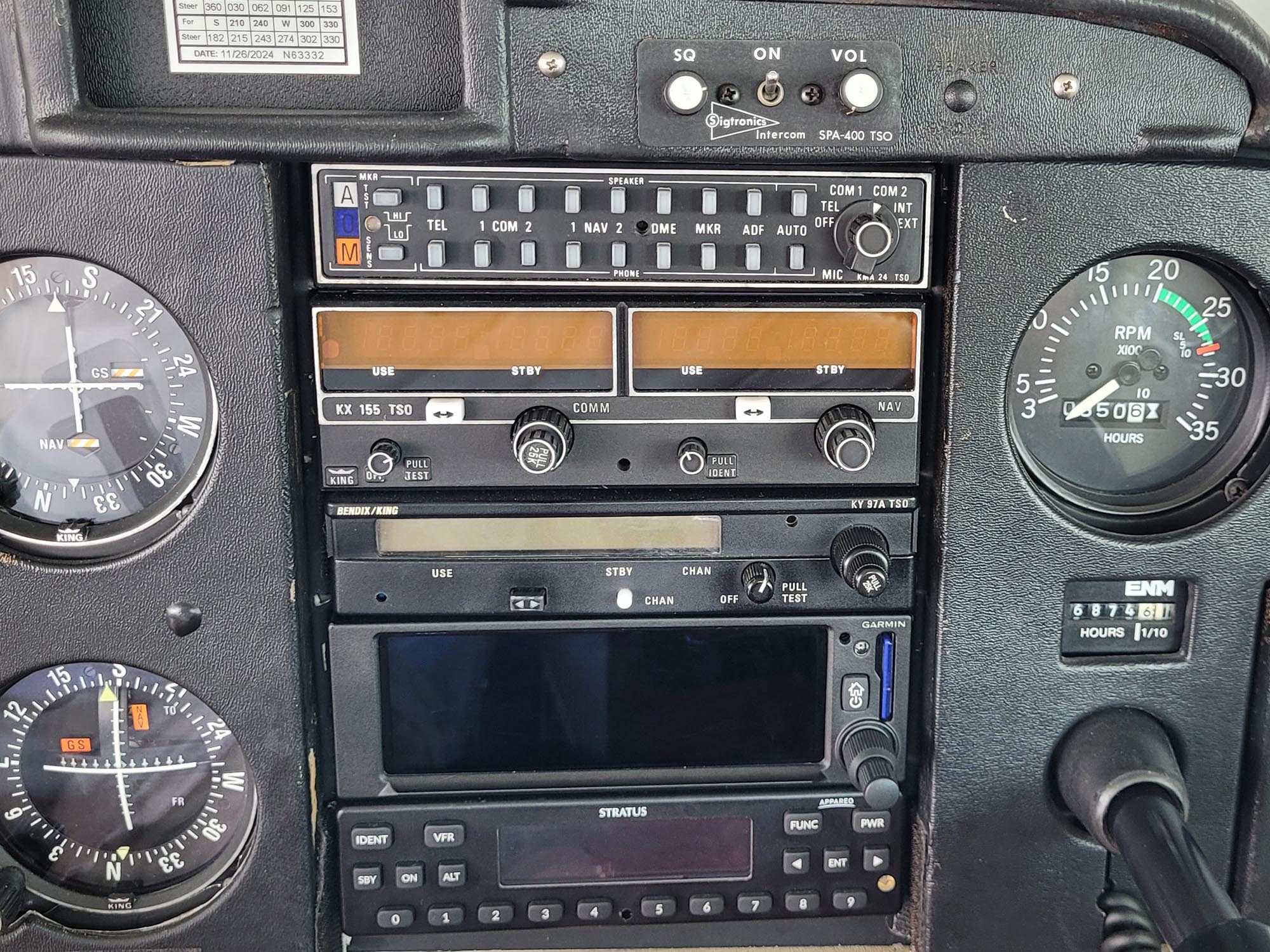

KMA 24 Audio Panel
KX 155 Nav/Comm w/ Glideslope
KY 97A Comm
Garmin GPS 175 Touchscreen
Stratus Appareo Transponder (ADS-B Out)

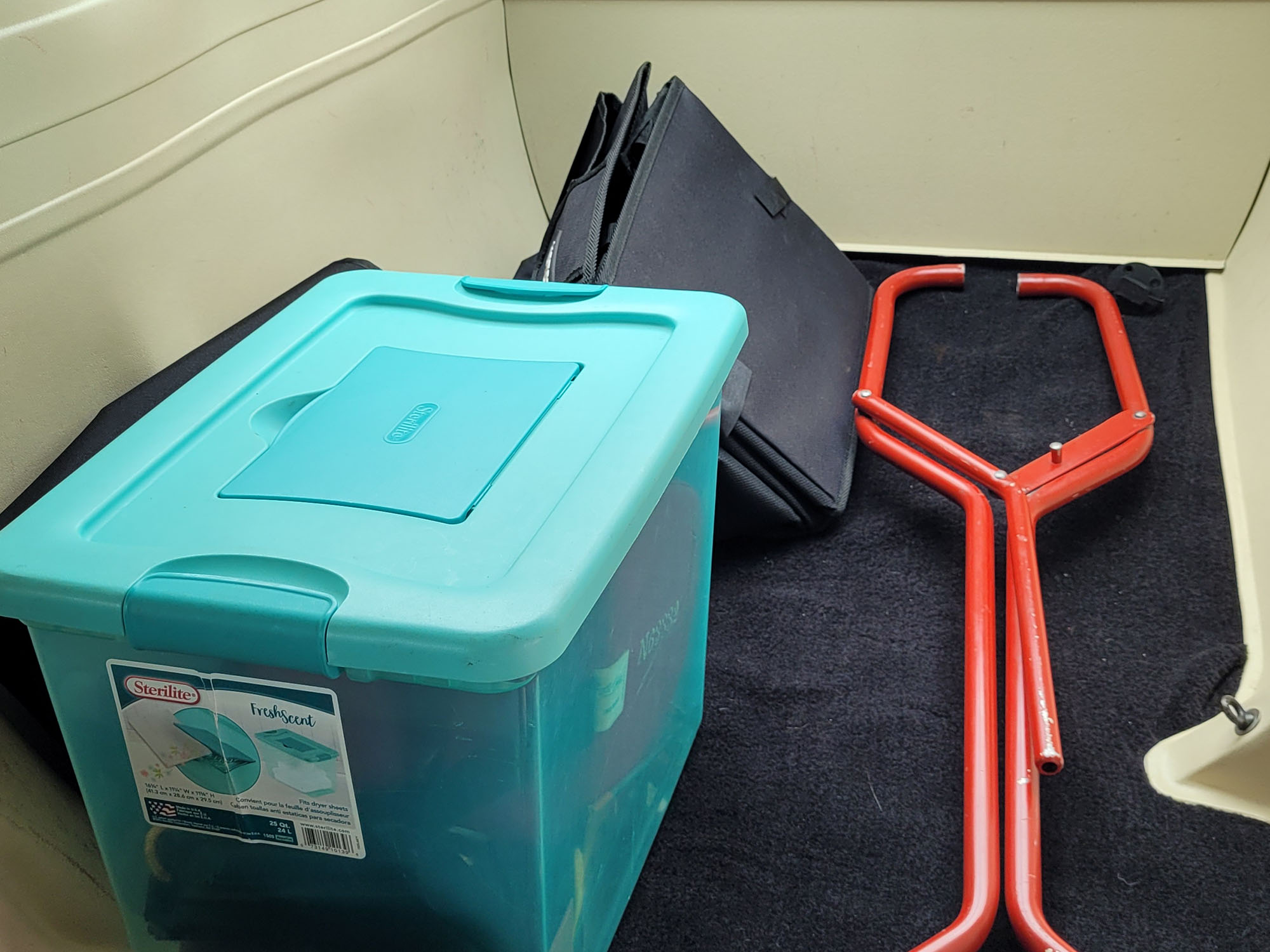

Auxiliary 12 volt/15-amp power port installed in the aft baggage controllable with a switch from the cockpit. This can be used for a small supplemental heater, chargers, portable electric coolers, etc.
Performance Data
Stall at max gross 1600lbs. is 42 dirty, 47 clean.
Vx 56
Vy 68
Vne 141
Vno 107
Va 88-97
Vfe 85
Max X-wind 13
Best Glide 60
Final approach speed (flaps 40) 55
Takeoff
- Ground Roll: 735 ft
- Over 50 ft obstacle: 1385 ft
- Rate Of Climb: 670 fpm
- Ceiling: 14000 ft
Landing
- Ground Roll 445 ft
- Over 50 ft obstacle: 1075 ft

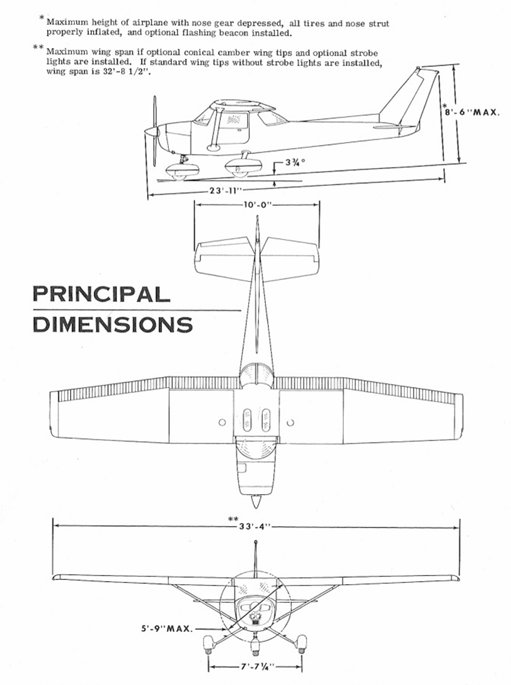

Specs
- Wingspan: 33’ 4″
- Length: 23’ 11”
- Height: 8’ 6”
- Gross Weight: 1600 lbs.
- Engine: 100 HP Continental 0-200-A
- Fuel: 26 gallons total, 22.5 gallons usable
- # of Seats: 2
- Baggage floor weight: 120 lbs.
